AS-BACK JAMMER

Manpack IED Jammer

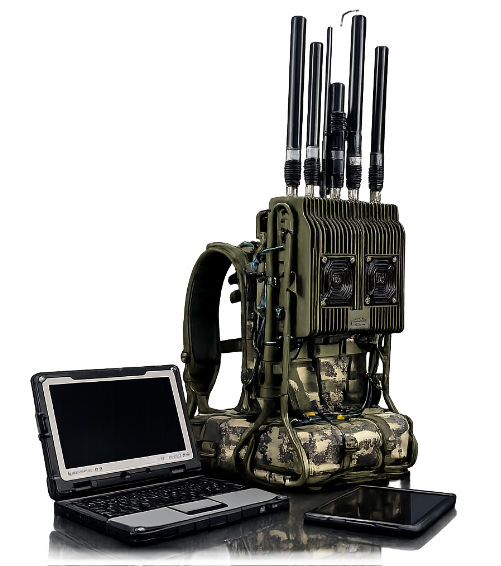

ASBACK MANPACK IED JAMMER

Engineered to Protect Lives
with Electronic Shield

AS-BACK Jammer ensures absolute electronic dominance in the most hostile environments. As the pioneer of Türkiye's first Electronic Warfare systems, we deliver battle-proven multi-domain mastery across C-UAS, ISR, and Tactical Jamming—empowering allied nations through absolute Technology Transfer (ToT).

AS-Back Capabilities

GSM Triggering
████████████████████
VHF UHF Radio
████████████████████

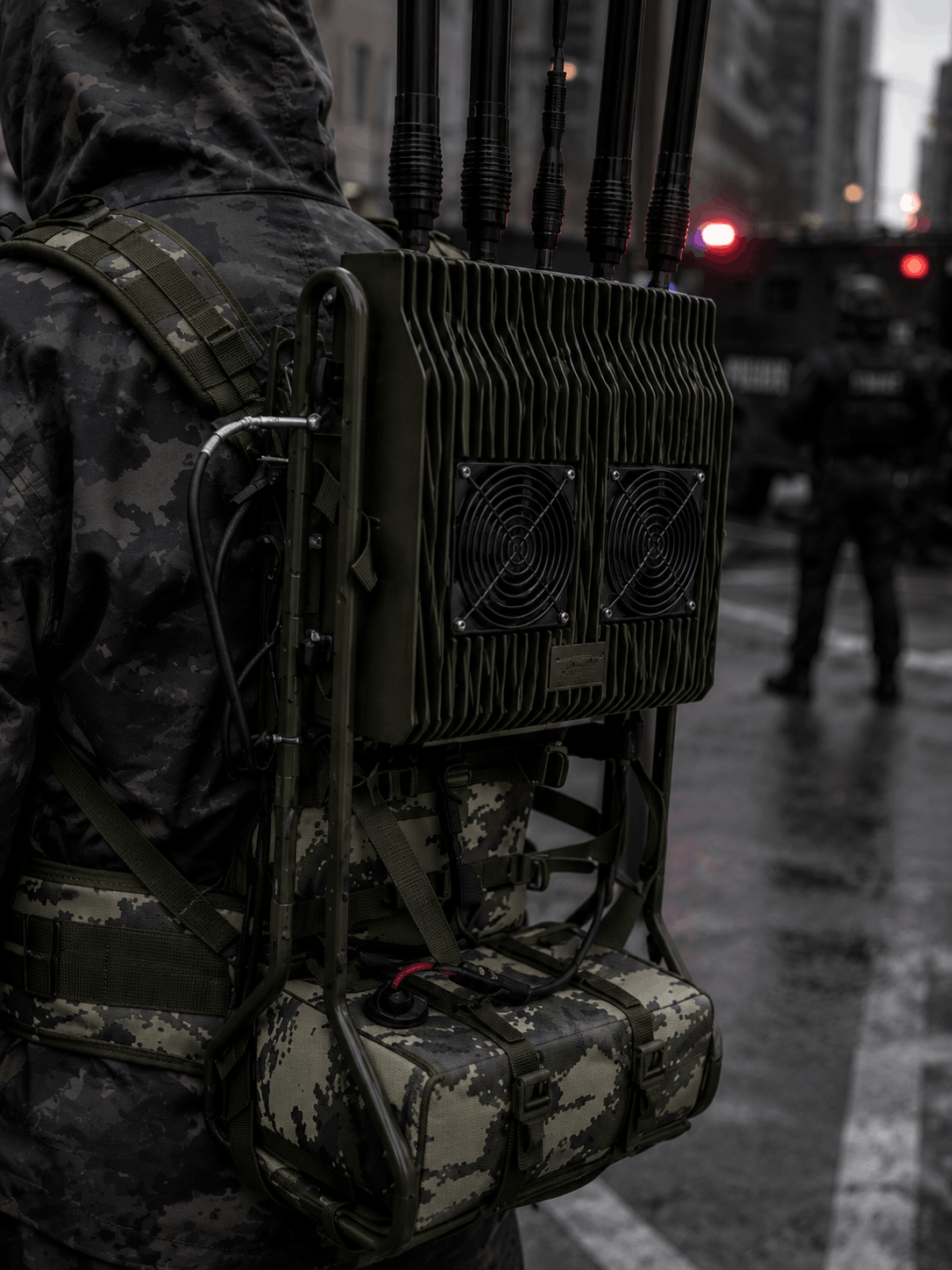

Short-Range RF
████████████████████
Drone Triggers
████████████████████

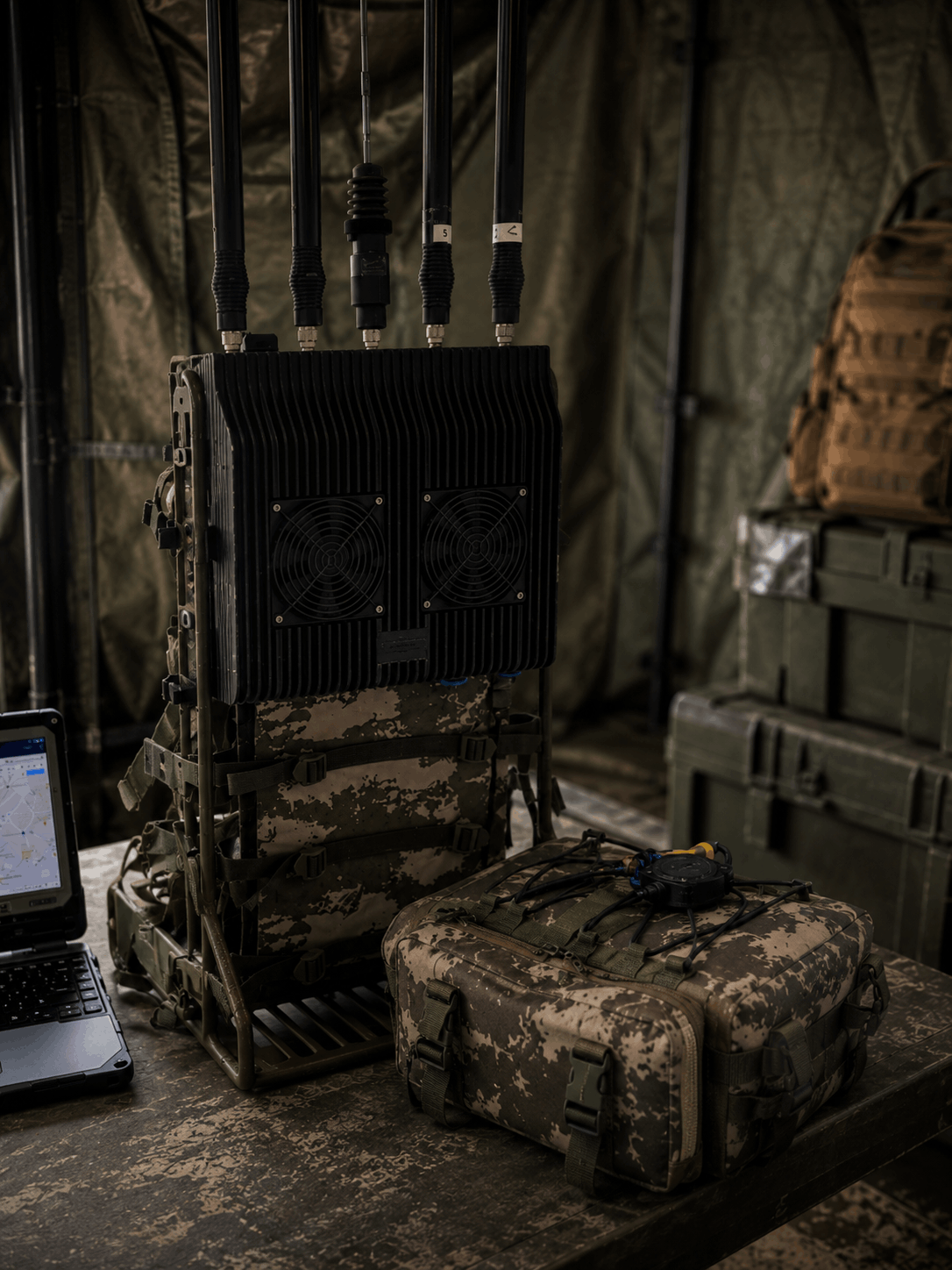

Operational Environments
████████████████████

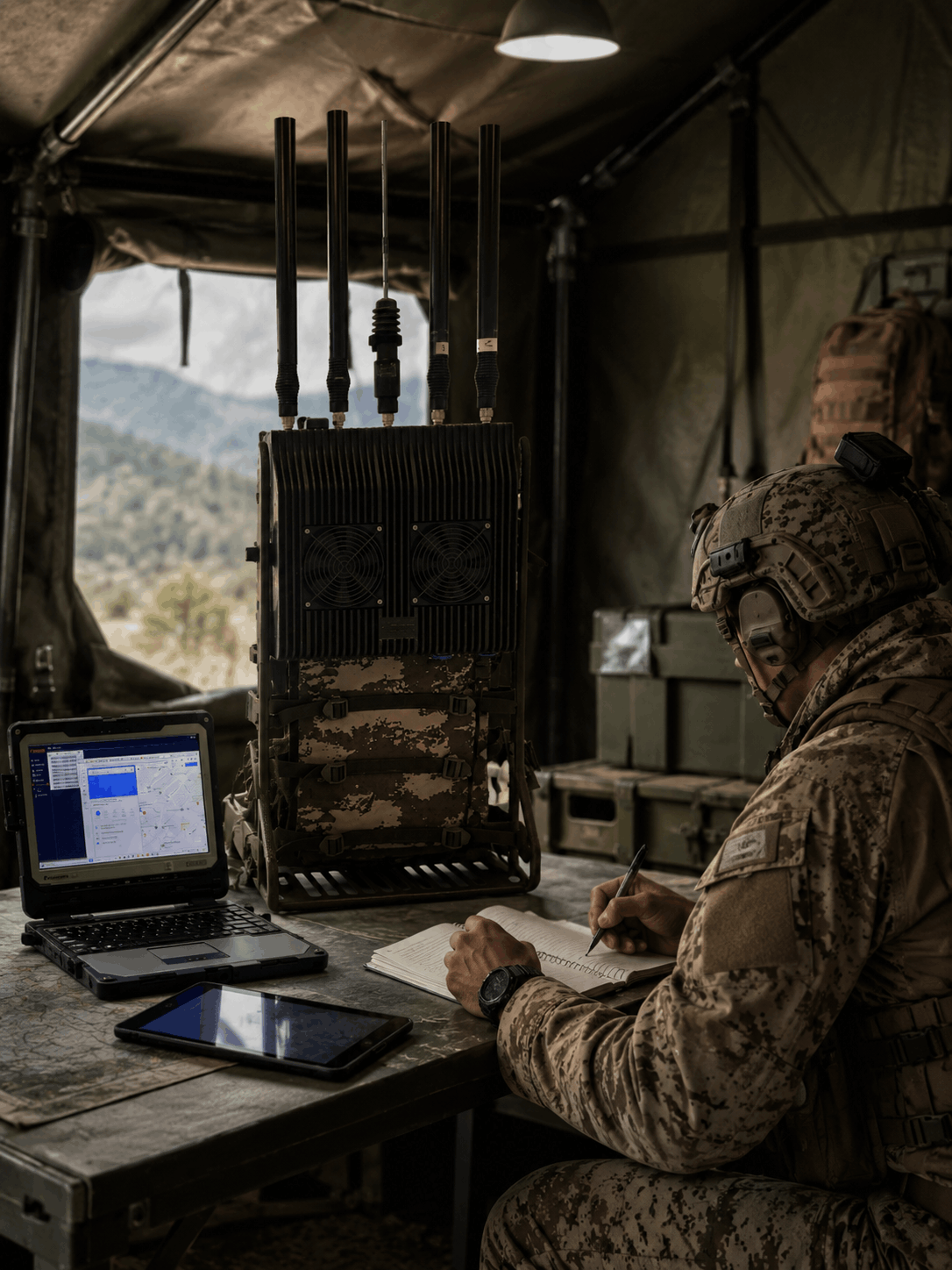

Advanced Threat Integration
████████████████████

Specs

OPERATION FREQUENCY RANGE

BAND 1: 20-500 MHz
Low frequency RC triggers
BAND 2: 500-1000 MHz
GSM 900, VHF radios
BAND 3: 1000-2000 MHz
GSM 1800, UMTS, GPS
BAND 4: 2000-2700 MHz
LTE, WiFi, Bluetooth
BAND 5: 2700-4000 MHz
Advanced LTE, 5G
BAND 6: 4000-6000 MHz
High-frequency triggers, 5G

ASBACK 25G5A SYSTEM OVERVIEW

Wide-Band Coverage (20–6000 MHz)
Multi-Channel Output (6 independent channels)
Omnidirectional 360° coverage
Advanced Digital Control (FPGA + DSP)
Military Durability (MIL-STD-810G)
Extended Operation (2 hours continuous)

OPERATIONAL RANGE

STANDARD CONFIGURATION 80 METERS RADIUS
ENHANCED CONFIGURATION UP TO 2000 METERS

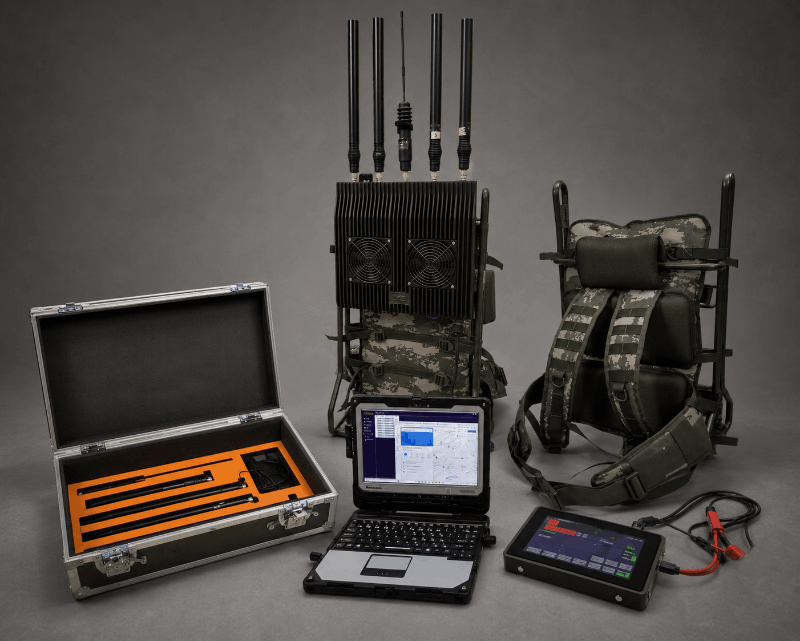

STANDARD ACCESSORIES

All accessories are optimized for rapid field deployment and minimal logistical burden, ensuring operational readiness in any environment.

ASBACK Standard Accessories
  • High-capacity rechargeable battery pack
  • Military-grade battery charger unit
  • Tactical carrying accessory textiles
  • Multi-band antenna array system
  • Environmental protective suit
  • Secure remote control cable
  • Military rugged laptop computer
  • Integrated internal GPS module

ENVIRONMENTAL RESISTANCE & CERTIFICATIONS

Built for operational durability.
Tested under MIL-STD-810G in the harshest conditions on Earth.

High Temperature: +60°C (2 hours)
Low Temperature: -10°C continuous
Temp Shock: -10°C to +60°C in 10s
Vibration: Three-Axis (Mil-Std-810G)
Rain: 280 L/m² rainfall, splash proof
RF Resistance: Multi-layer EMI shielding
ASBACK Environmental Resistance

ASBACK CONTROL SOFTWARE

Band ON/OFF Control (Individual activation)
Spot/Barrage Mode Selection
Power Level Adjustment & Optimization
Mission Profile Management

Comprehensive system management through an intuitive interface running on a military-grade rugged laptop.

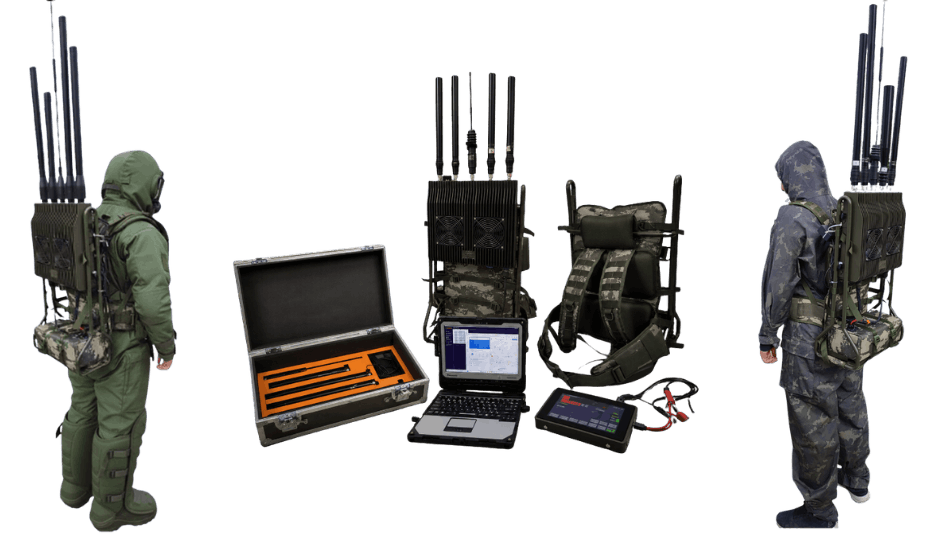

TACTICAL CARRYING SYSTEM

  • Military-Certified Carrying Case
  • Padded shoulder straps with load distribution
  • Adjustable sternum and waist stabilization
  • Ventilated back panel for extended wear
  • Quick-detach buckle system
MIL-STD-810G
CERTIFIED
Vibration, Humidity, Shock Tested.
PORTABLE
BACKPACK
18 Kg (excluding Battery).
DDS DSP
TECHNOLOGY
Digital RF Generation.
FULLY WEATHER
PROOF
SYS:ONLINE RF:NOMINAL FREQ:430–5800MHz BANDS:MULTI STATUS:READY
ASBACK MANPACK IED JAMMER

MILITARY-GRADE PORTABLE
ELECTRONIC COUNTERMEASURE SYSTEM

ASBACK delivers electronic dominance where it matters most.

Request the full technical datasheet, pricing, and deployment options.

Our defense specialists will prepare a tailored briefing for your operational requirements.

INITIATE CONTACT Encrypted · Confidential
MODULES:2 DEPLOY:<15MIN RANGE:CUSTOM TEMP:-20/+50C CLEARANCE:REQUIRED

The Tech

  • Impact-Absorbing Interior Lining

    Custom-molded foam padding protects electronics from drops, impacts, and rough handling during tactical movements.

  • Dedicated Antenna Module Compartments

    Organized storage slots prevent antenna damage and ensure complete component accountability during field operations.

  • Rapid Personnel Deployment Design

    Quick-release fasteners and ergonomic access enable soldiers to don equipment and achieve operational status within minutes.

  • Ergonomic Design Features

    The carrying system integrates seamlessly with standard military combat equipment, allowing soldiers to maintain full tactical mobility while carrying ASBACK.

Spot Jamming Mode

Spot Jamming Mode

Maximum power concentrated on single frequency for precise threat neutralization. Adapts to specific mission profiles.

Barrage Jamming Mode

Barrage Jamming Mode

Full spectrum suppression across entire bandwidth for comprehensive protection. 6 independent RF output channels for simultaneous threat engagement.

Open Communication Window

Open Communication Window

Friendly communication maintained with < -3 dB window without compromising security. Maintains unit coordination during active suppression.

Next System

EAGLE C-UAS

Man-portable counter-UAS jammer system with multi-band frequency coverage for total tactical airspace denial.

EAGLE C-UAS
SYS: EAGLE C-UAS TYPE: MAN-PORTABLE C-UAS RANGE: 2-5KM
